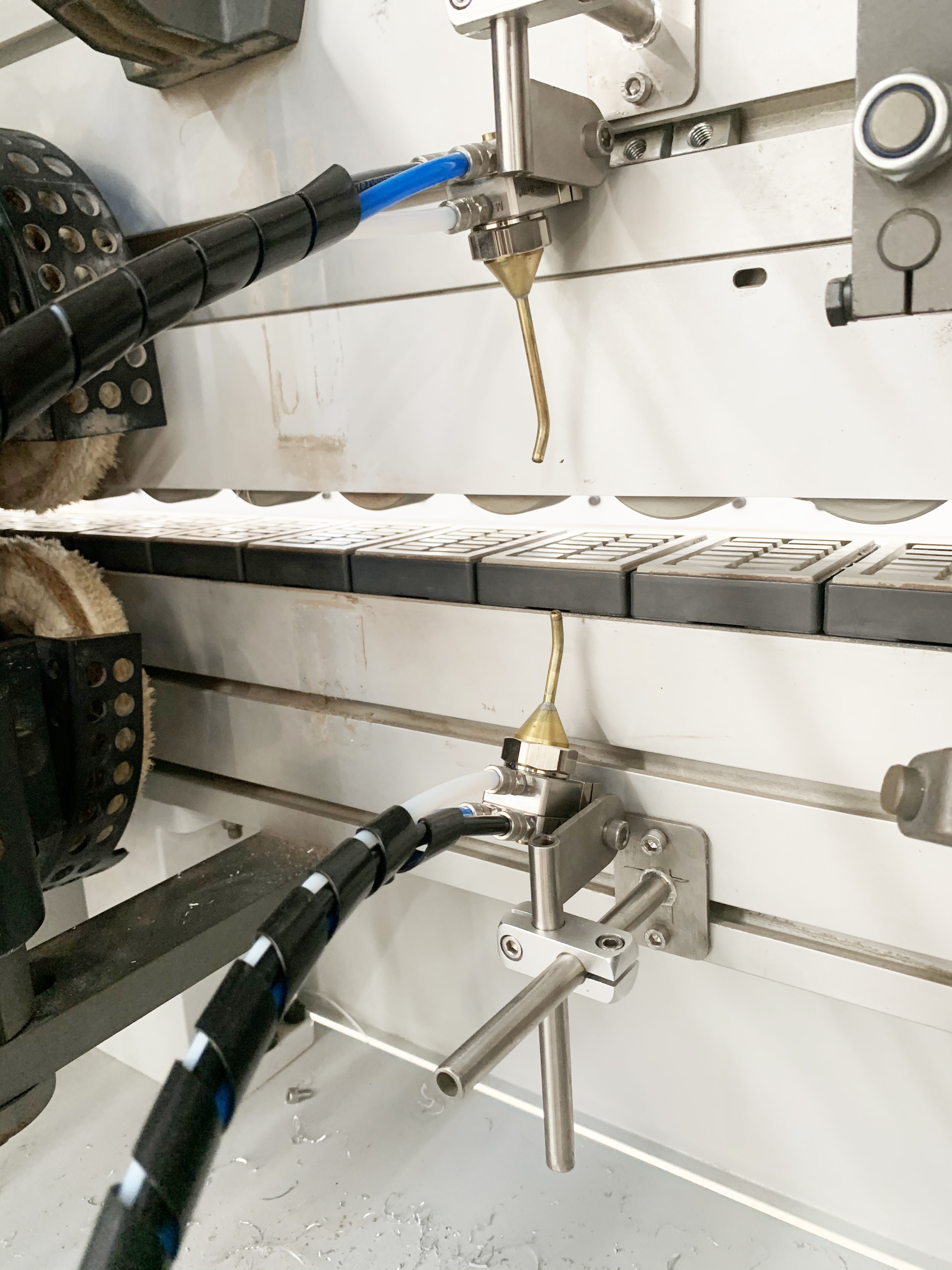

High-precision siphon nozzles

l Corrosion and wear-resistant material with a long service life

l Even spraying and good atomization, no dripping

l Stable spray volume due to a gear lock

l Can be used in harsh environments (such as in dusty environments)

l Short switch response time, functional stability even at high frequencies

Cleaning process of the Sword Brush Dust Cleaning System

1.The Clean&More Liquid is sprayed on the brush filaments to prevent electrostatic charging.

2.The micro-moistened brush filaments wipe horizontally across the board surface and convey the particles to a suction system.

3.Compressed air nozzles clean the circulating linear brush, while a suction system disposes the detached particles.

According to the characteristics of the board, different kinds of Sword Brush Dust Cleaning Devices are available:

l For flat wood boards and panels: Sword Brush Dust Sweeper

l For boards with bore holes: Sword Brush Dust Sweeper 3D

l For profiled panels: Sword Brush Dust Sweeper Rotation

Sword Brush Dust Sweeper

l For furniture boards and panels without holes or profiling

l Dust and particles are absorbed by the brushes and conveyed to a suction system

l Constant wiping pressure on the board surface

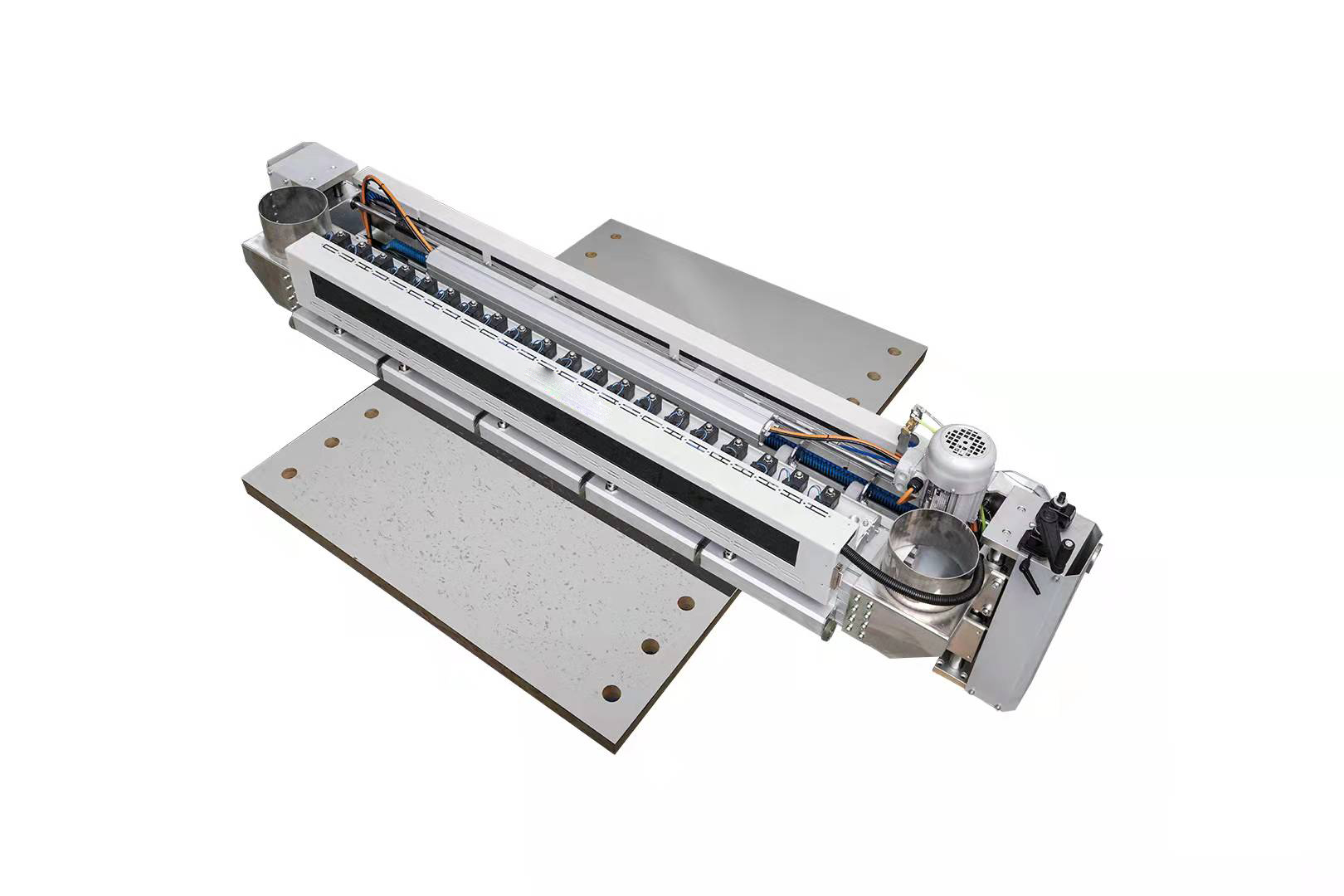

Sword Brush Dust Sweeper 3D

l Developed for boards and panels with through holes, blind holes or cuts

l A compressed air blast blows dust and particles out of bore holes and grooves

l Other residues and dust are removed by the sword brush

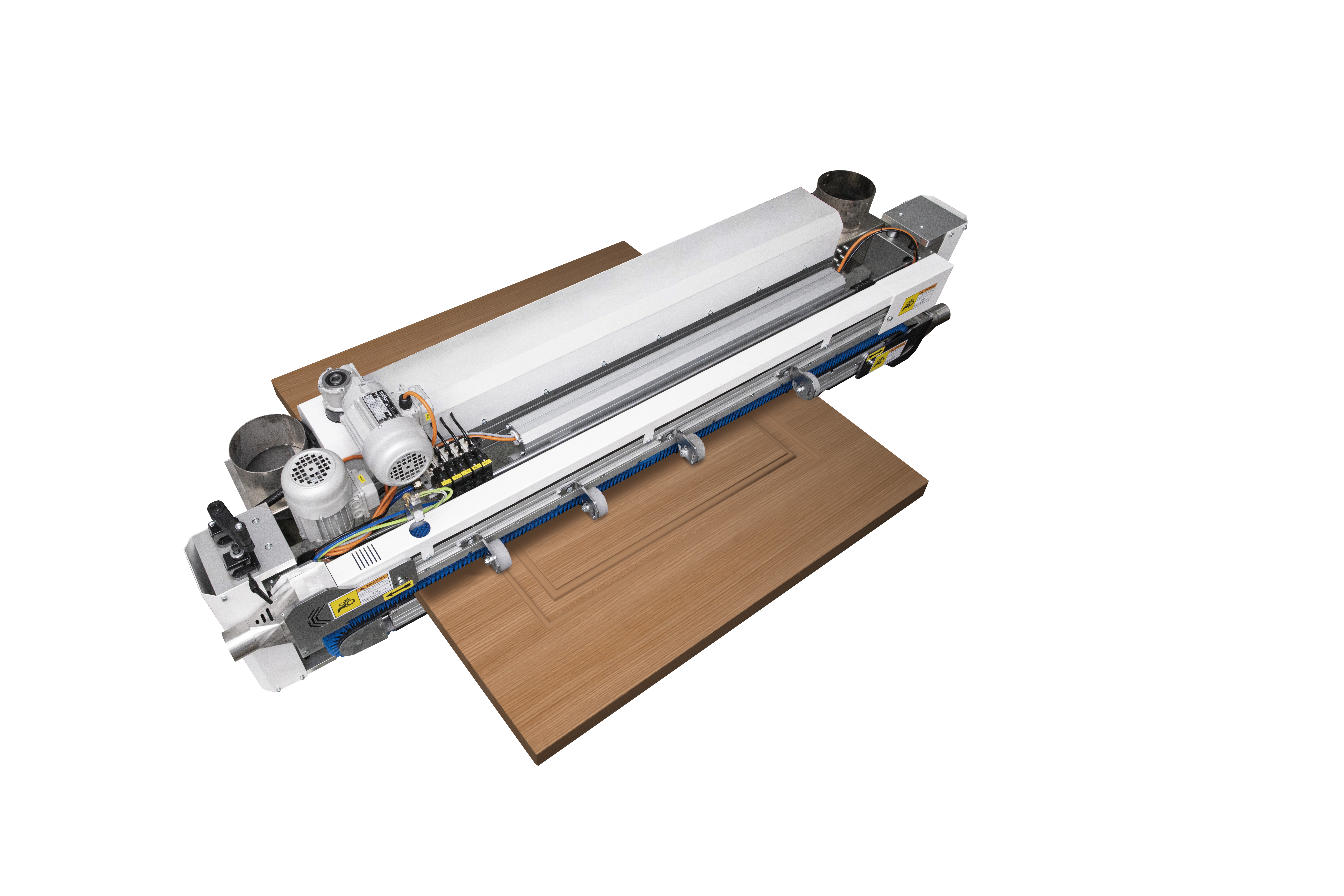

Sword Brush Dust Sweeper Rotation

l Developed for profiled surfaces and dust removal before veneer painting process (e.g. kitchen unit fronts)

l Rotating Tornado Nozzles eradicate particles and dust from grooves and recesses by means of compressed air

l Other residues and dust are removed by the sword brush
